Advantage™:The ModernGatling Gun
The Advantage™ represents High Ground Defense's next generation of Gatling gun technology. Chambered in 7.62x51mm NATO and weighing 46.45 lb (21.1 kg), the Advantage combines proven operating principles with a fundamentally redesigned architecture that reduces weight, increases reliability, and improves maintainability. The feed system, delinking mechanism, transfer assembly, drive system, safety features, and electronic controls have all been re-engineered to create a modern weapon system optimized for today's operational requirements across air, land, and maritime platforms.

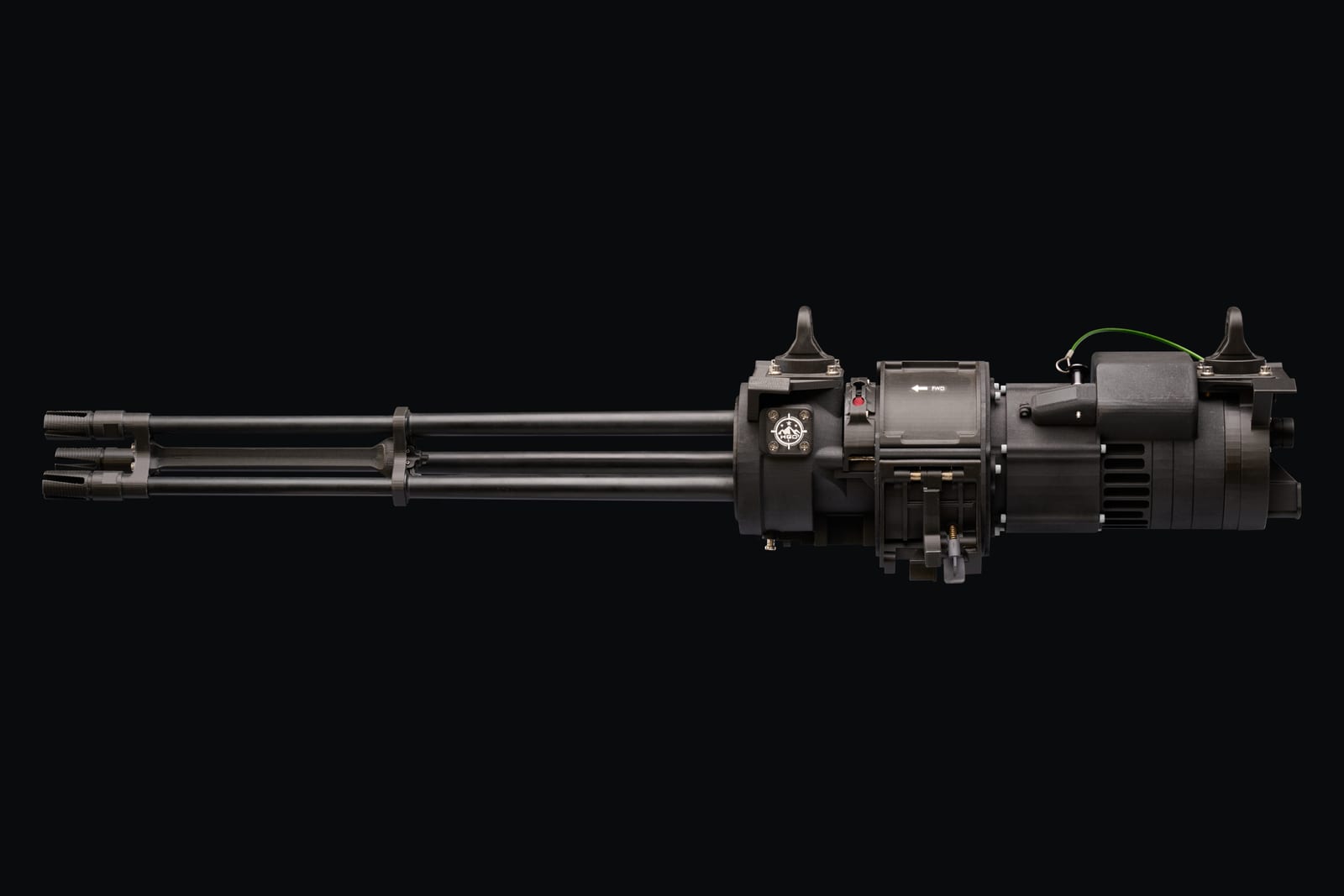

A New Architecture Built on Proven Geometry
The Advantage preserves the proven operating geometry refined over more than five decades of Gatling gun development, including bolt assemblies and the primary bolt cam path, while comprehensively redesigning the systems responsible for feeding, delinking, cartridge transfer, drive, safety, and electronic control. Rather than redesigning components that have consistently demonstrated reliable performance, High Ground Defense focused its engineering effort on the mechanisms that most directly influence reliability, maintainability, weight, and overall system performance.
A key element of the design is a feed mechanism concentric with the rotor and barrel cluster that rotates in the opposite direction. This opposing motion minimizes net rotational inertia, reducing transient loads and improving overall system balance. The result is a next-generation Gatling gun architecture that preserves proven operating principles while introducing a fundamentally modern mechanical design. The M134HG Minigun modernizes the legacy platform component by component; the Advantage begins again at the drawing.
Intelligent Drive and Health Monitoring
The Advantage is powered by a brushless DC servo motor with high-precision closed-loop control, providing programmable firing rates of up to 3,000 rounds per minute while maintaining precise control throughout the operating cycle.
The intelligent drive system enables capabilities beyond conventional weapon drives, including programmable burst limits, real-time current and temperature monitoring, continuous round counting, and integrated Status, Health, and Usage Monitoring (SHUM). A remote command and status interface supports direct integration with modern aircraft, ground vehicle, and maritime platform control systems. The servo-controlled drive minimizes startup torque reaction on the host platform while providing predictable system response, precise speed regulation, and onboard diagnostics that reduce troubleshooting time and support maintenance planning.
Positive Mechanical Rotor Lock
In the SAFE condition, the Advantage employs a positive mechanical rotor lock that physically prevents rotor movement. Unlike systems that rely solely on electrical interlocks or drive control logic, the rotor is mechanically secured in the safe position, providing a direct, inspectable mechanical means of preventing rotation.
Because the locking mechanism is mechanical, its engagement can be verified during inspection and maintenance without dependence on electronic systems or software.
This design reflects High Ground Defense's philosophy that critical weapon safety functions should be accomplished through positive mechanical engagement wherever practical: a simple, robust, and verifiable safety architecture for handling, transport, maintenance, and operation. The evaluation guide covers how to compare safing designs across the class.
Advantage™ Specifications
The Advantage™ fires 7.62x51mm NATO ammunition at a programmable, on-demand rate of up to 3,000 rounds per minute. The weapon weighs 46.45 lb (21.1 kg) and measures 41.2 in (104.6 cm) overall.
| Performance | |
|---|---|
| Caliber | 7.62x51mm NATO |
| Firing rate | Programmable on demand, up to 3,000 rds/min |
| Barrels | 3 |
| Drive | Brushless DC servo, closed-loop control |
| Dimensions + Weight | |
| Weight | 46.45 lb (21.1 kg) |
| Length | 41.2 in (104.6 cm) |
| Diameter | 8.5 x 7.7 in (21.6 x 19.6 cm) |
Values are from the current Advantage data sheet.

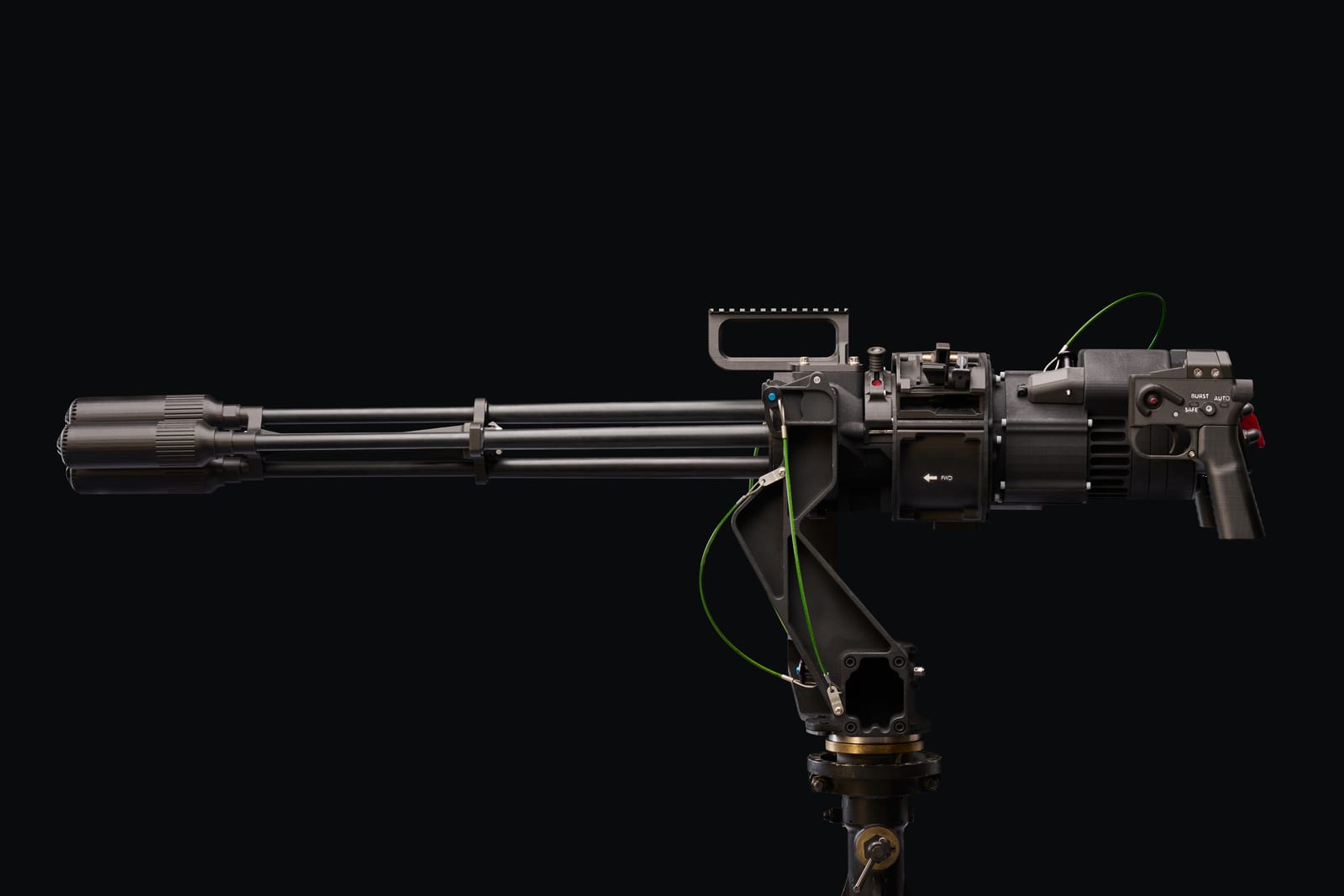

Platform Integration
The Advantage™ is designed for direct integration across air, land, and maritime platforms. Its flexible ammunition feed system supports multiple feed chute orientations, allowing the weapon to adapt to platform requirements rather than forcing changes to the installation.
Integrated suspension lug mounting provisions support fixed-forward, remote, and crew-served configurations, while the self-contained barrel clamp incorporates a threaded interface for a variety of muzzle devices. The compact, modular design simplifies integration with aircraft, tactical vehicles, naval vessels, and remote weapon stations.
Training and Field Support
High Ground Defense provides operator and maintenance training to support fielding and long-term sustainment of every weapon system.
Standard training programs include a three-day operator course and a five-day maintenance course, covering safe operation, system familiarization, preventive maintenance, troubleshooting, inspection, and repair procedures. Training can be tailored to customer requirements, platform configurations, and mission profiles.
Beyond initial instruction, High Ground Defense provides ongoing technical support, spare parts, engineering assistance, and product sustainment throughout the service life of the weapon system.
> Training scope is defined per program. Include it in your procurement inquiry.
Advantage™ Frequently Asked Questions
What is the Advantage™?
What caliber does the Advantage™ fire?
What is the Advantage™'s rate of fire?
How much does the Advantage™ weigh?
How is the Advantage™ made safe?
What platforms can the Advantage™ be integrated with?
